Side Power SE100/SE100-IP, Twin Props Thruster

Product Brand: SKU: SE100/185T-12IP

$5,436.00

SE100/185T-12IP, 12V, Twin Props 220 lbs of Thrust, Ignition Protected

Name Description
Thrust @ 10.5VDC 220 lbs (100 kg)
Thrust @ 12VDC 256 lbs (116 kg)
Typical Boat Size 35-55′ (12-17 m)
Power @ 10.5V 8.4 hp (6.3 kw)
Recommended Fuse Size 500 Amps (SMANL500)
Fuse Size 500 Amp
Minimum Battery Capacity 1425 CCA SAE
Approximate Ship Weight (lbs) 68

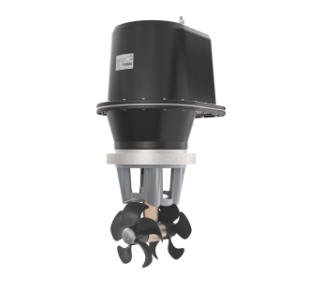

SE100/185T-12IP Thruster (Sealed Gearleg) with IP Housing, 12V or 24V, ignition protected, 185mm


The Side-Power SE100/185T-12IP is the most powerful thruster available in the popular 185mm tunnel diameter and thereby very popular for boats where a maximum thrust in a compact tunnel is necessary.



Other items to consider when purchasing a new thruster:

  • Bow Tunnel or Stern Tunnel
  • Control Panels and Remote Controls
  • AutoMainswitch, Battery Disconnect, Fuse & Fuseholder
  • 4-Wire Harnesses (when not using AutoMainswitch)
  • 5-Wire Harnesses (for use with AutoMainswitch)
  • Ignition Protected Features:
    • Certified and individually tested to ISO 8846 Ignition Protected standards
    • Waterproof (not recommended for fully submerged mounting)
    • Stainless cable seals
    • Secondary overheat switch secures general temperature in housing
    • Rugged plastic housing in VO self-extinguishing material
    • Supplied with 3.28′ (1m) main power cables and bulkhead mount terminals for easy and safe power supply hook-up
    • Supplied with 32.8′ (10m) control cable with connector for connection outside of ignition protection area

Weight 70 lbs
IGNITION PROTECTED

YES

VOLTAGE

12V

SE100/185T-12IP Thruster (Sealed Gearleg) with IP Housing, 12V or 24V, ignition protected, 185mm


The Side-Power SE100/185T-12IP is the most powerful thruster available in the popular 185mm tunnel diameter and thereby very popular for boats where a maximum thrust in a compact tunnel is necessary.



Other items to consider when purchasing a new thruster:

  • Bow Tunnel or Stern Tunnel
  • Control Panels and Remote Controls
  • AutoMainswitch, Battery Disconnect, Fuse & Fuseholder
  • 4-Wire Harnesses (when not using AutoMainswitch)
  • 5-Wire Harnesses (for use with AutoMainswitch)
  • Ignition Protected Features:
    • Certified and individually tested to ISO 8846 Ignition Protected standards
    • Waterproof (not recommended for fully submerged mounting)
    • Stainless cable seals
    • Secondary overheat switch secures general temperature in housing
    • Rugged plastic housing in VO self-extinguishing material
    • Supplied with 3.28′ (1m) main power cables and bulkhead mount terminals for easy and safe power supply hook-up
    • Supplied with 32.8′ (10m) control cable with connector for connection outside of ignition protection area

Weight 70 lbs
IGNITION PROTECTED

YES

VOLTAGE

12V
