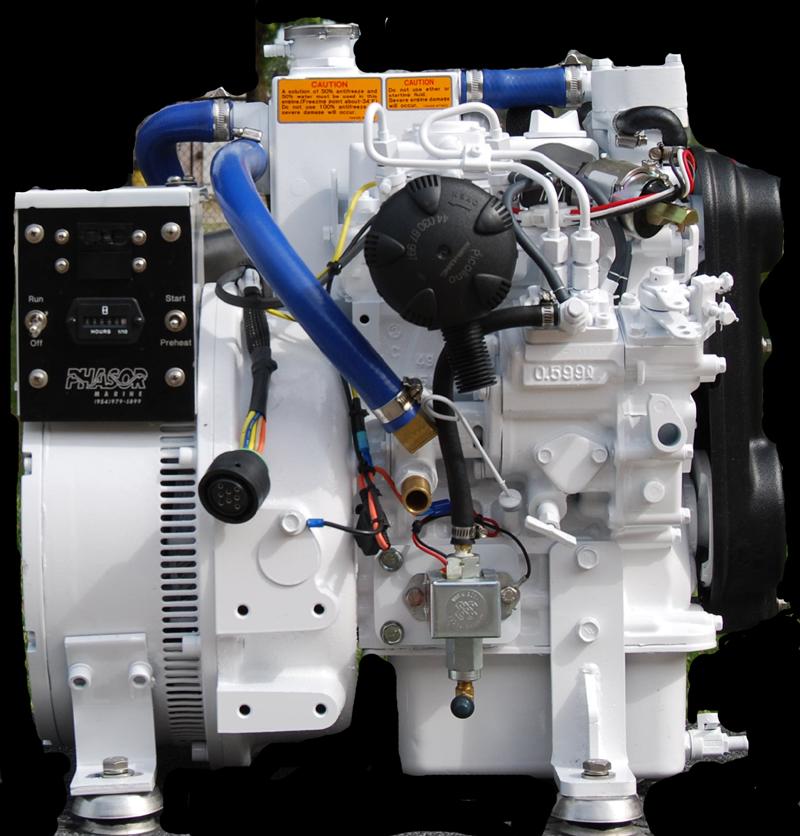

Phasor Marine

K2-4.5pmg

$0.00

Standard Features
  • Kubota Diesel Engine Single Bearing Direct Coupled Generator
  • Low 1800 RPM Operating Speed
  • Safety Shutdown System for High Coolant Temperature or Low  Lube oil Pressure
  • Single Series Circuit Control System with No Printed Circuit Boards-Tinned Wiring
  • Fresh Water Double Pass Heat Exchanger
  • Water Cooled Exhaust Manifold w/  Removable Integral Cupro-Nickel Heat Exchanger Core
  • Zinc Anode in Heat Exchanger
  • Stainless Steel Exhaust Elbow Cast
  • Gear Driven Raw Water Pump
  • Four Point Isolation Mounts S/S
  • Molded Blue Silicone Water Hoses with Stainless Steel AWAB Clamps
  • Air Intake Cleaner / Silencer
  • Main Line Circuit Breaker
  • Spin-On Lube / Oil Filter

Specifications

Horizontal water-cooled 4-cycle diesel engine

 KUBOTA Model

Z602-E4B

 Number of Cylinders

2

 Cu. In. Displacement

36.55

 Bore x Stroke [in.]

2.83" X 2.90"

 Dimension (L x W x H)

20" x 17" x 22"

 Dimension (L x W x H) Enclosure

26" x 20" x 24.2"

 Weight (lbs)

294

 Return line dia.

3/16"

 Fuel Line Dia.

5/16"

 Raw water dia.

3/4"

 Exhaust dia.

2.0"

 Output Voltage

120/240

 Output Amps

38/19

 Output Watts

4500
